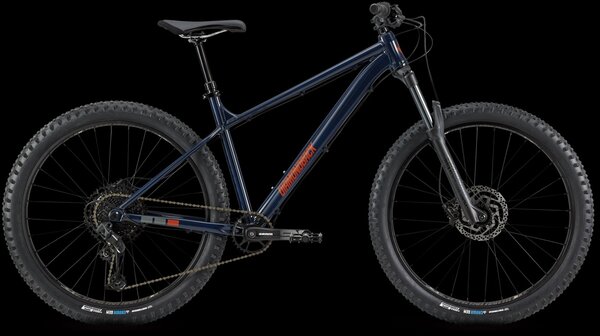

Diamondback SYNC'R

Diamondback SYNC'R
$1,399.00
Please select options

Details


Brakes
Hydraulic disc
Tire Size
27.5"
Frame material
Aluminum
Description
Versatile — that’s what’s always made our progressive trail bikes popular. These are bikes that are as at home blasting down trails alongside long-travel, full-suspension bikes at they are surfing mellow sections of singletrack. The Sync’r is our top of the line, do-it-all aluminum hardtail. The heart of the bike is a low-slung frame that’s both playful and confident. We’ve hung the Sync’r chassis with equally stellar components that include a RockShox Recon RL suspension fork with 140mm of travel, a SRAM SX Eagle 1×12 single-ring drivetrain with a wide 11-50 gear range, powerful Shimano hydraulic disc brakes, and our own Diamondback AL35 tubeless-compatible wheelset.

The Sync’r holds its own with no-nonsense hardtail precision and all-mountain capabilities, making it a great choice for any mountain biker.

Specifications
BIKE FRAME
6061-T6 Butted Alloy for 27.5", Tapered Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, 148x12MM Thru-Axle for Maxxel
BIKE FORK
Rockshox Recon RL, Solo Air, 140mm Travel, 32mm Stanchions, 15mm thru axle, Tapered Steerer Tube, w/ Turn Key Lock out
BIKE HEADSET
FSA NO.57, Sealed Cartridge for Tapered Headtube
BIKE CRANKS
SRAM SX Eagle w/ Steel 32T "Narrow Wide"
BIKE SPROCKET
32t
BIKE BOTTOM BRACKET
Power Spline
BIKE REAR DERAILLEUR
Sram SX 12 Speed
BIKE SHIFTER
Sram SX Trigger 12 Speed
BIKE COGSET
Sram SX 12 Speed 11-50T
BIKE CHAIN
Sram SX 12 Speed
BIKE FRONT HUB
32h Alloy, 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
BIKE REAR HUB
32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, for SRAM XD w/ CNC Disc Mount
BIKE SPOKES
14g Stainless Steel
BIKE RIMS
Diamondback AL35, Tubeless ready, 32h
BIKE TIRES
Vee Rubber Crown Gem 27.5x2.8
BIKE BRAKE LEVERS
Shimano MT500 Hydraulic
BIKE PEDALS
DB Alloy Platform w/ Replaceable Pins
BIKE HANDLEBAR
Raceface Chester, 780mm Wide, 35 Bar Bore
BIKE GRIPS
New DB "Flanged" Lock-on, 135mm Silcone
BIKE STEM
Race Face Chester, 40mm Reach, 35 Bar Bore
BIKE SEAT
DB Sync'r Saddle
BIKE SEATPOST
JD YSP18JL, Dropper post with Remote 30.9mm
BIKE EXTRAS
Tool Kit,
BIKE BRAKES
Shimano MT500 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors
PRODUCT ID
4520
Geometry
Frame Size SM/16 5'4"-5'7" MD/18 5'7"-5'10" LG/20 5'10"-6'2" XL/22 6'2"-6'6"
Rider Height - - - -
Bike Stand Over Height 736.0 mm 757.0 mm 791.0 mm 823.0 mm
Bike Seat Tube Length 420.0 mm 460.0 mm 510.0 mm 560.0 mm
Bike Top Tube Length 591.0 mm 606.0 mm 625.0 mm 645.0 mm
Bike Head Tube Length 110.0 mm 110.0 mm 125.0 mm 140.0 mm
Bike Head Angle 66.0 mm 66.0 mm 66.0 mm 66.0 mm
Bike Seat Angle 74.0 mm 74.0 mm 74.0 mm 74.0 mm
Bike Wheel Base 1136.0 mm 1152.0 mm 1172.0 mm 1194.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 42.0 mm 42.0 mm 42.0 mm 42.0 mm
Bike Bb Height 317.0 mm 317.0 mm 317.0 mm 317.0 mm
Bike Bb Drop 55.0 mm 55.0 mm 55.0 mm 55.0 mm
Bike Stem Length 45.0 mm 45.0 mm 45.0 mm 45.0 mm
Bike Handlebar Width 785.0 mm 785.0 mm 785.0 mm 785.0 mm
Bike Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 350.0 mm 350.0 mm 350.0 mm 350.0 mm
Bike Stack 584.0 mm 584.0 mm 598.0 mm 611.0 mm
Bike Reach 423.0 mm 440.0 mm 453.0 mm 469.0 mm

Part Numbers

Option MPN Store SKU
SMALL 02-0310165 02-0310165
MEDIUM 02-0310166 02-0310166
LARGE 02-0310167 02-0310167
X-LARGE 02-0310168 02-0310168
