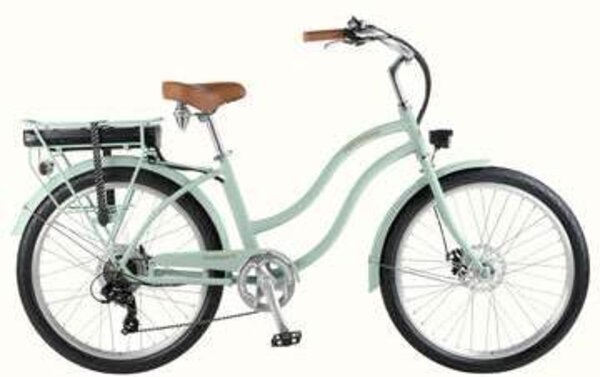

Retrospec CHATHAM REV 350 STEP THRU

Retrospec CHATHAM REV 350 STEP THRU
$1,450.00
Color:
MATCHA GREEN
Please select options
This product is not available for online purchase. Please call us or visit our store.

Details

FRAMESET
Sizes 1 size 26" x 431mm/43cm/17"
Material Alloy, 6061 TIG welded
Dropouts 2x rear dropout eyelets, 1x rear fender eyelet, rear rack mounts
Fork Steel, 28.6mm/1 1/8" Threaded for Quill, TIG welded, 2x eyelets
WHEELSET
Rims Alloy double-wall, 26" x 36H x 13G
Hubs F: Alloy bolt-on, R: Hub motor bolt-on
Spokes 36H x 13G UCP w/brass nipples
Tires 26 x 2.40, S/V, Wanda
E-POWER SYSTEM
36V/350W Motor Brushless rear hub motor, 9-pin connector. MXUS
Drive Mode, Display PAS/thumb-push throttle-Left side, speed sensor, LED handlebar-mount display panel w/6 assistance levels, w/Start-Aid 6kph (~4mph). Bigstone E300 Display Head.
Charge Time (empty to full) 10.4Ah battery (350 & 500W): 5-6 hours
36V/350W range up to 28 miles
DRIVETRAIN
Rear Derailleur Shimano Tourney 7S
Crankset Prowheel 170mm x 42T, alum arms, steel chainring, no logos
Chain KMC 3/32" x 118L
BB Steel sealed cartridge, 68mm x 126mm
Freewheel/Cog Shimano 7-speed 14-28 (14-16-18-20-22-24-28)
COMPONENTS
Brakes JAX Mechanical disc Front & Rear, 160mm (Model JAX-8, brake pads #YK-34)
Handlebars Alloy low-rise, 680mm width
Grips Comfort grips (for GripShift)
Stem Alloy quill, single-bolt
Saddle Retrospec Comfort w/springs
Seatpost Alloy 27.2 x 300mm w/integrated micro-adjust clamp
Seatpost Clamp Alloy QR
Pedals PP platform, loose-ball 9/16"
EXTRAS
Kickstand Rear mount, adjustable, aluminum alloy
Rear Carrier Steel. Battery holder & carrier, elastic tie-down strap
Bell Alloy
Light(s) Front (4x AAA) + Rear (2x AA), batteries included
Fenders Steel fenders w/alloy stays
Chaincover Full coverage/length, steel
Tools 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
Recommended Weight Limit 220lbs
Item Weight 58 lbs (battery included)

Part Numbers

Option MPN Store SKU
MATCHA GREEN 4559 4559
